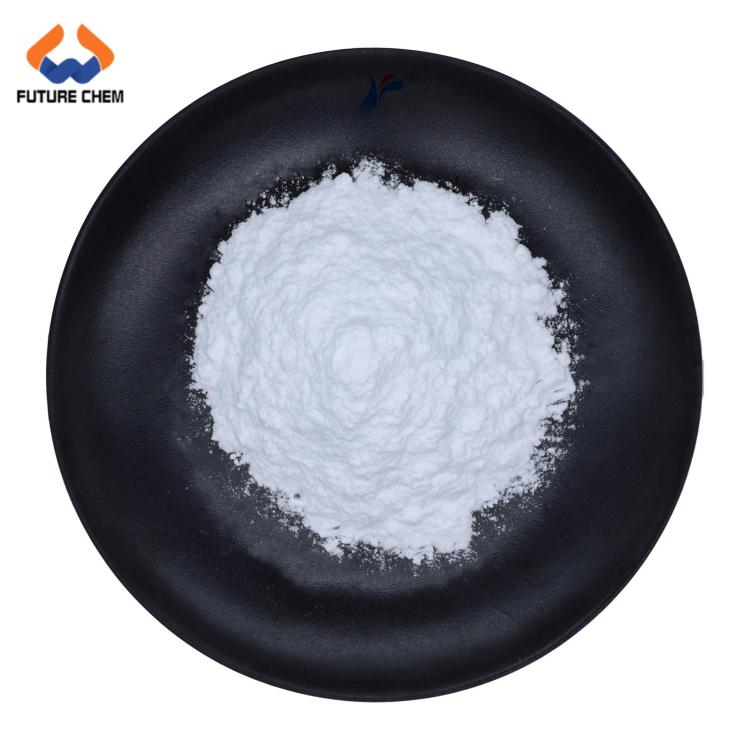

Industrial grade sodium hexametaphosphate CAS 10124-56-8

1. What is Sodium Hexametaphosphate?

2 . Ten Core Applications of Industrial-Grade Sodium Hexametaphosphate

2.1 Industrial Water Treatment – A Three-in-One Solution for Scale Inhibition, Corrosion Inhibition, and Softening

This is the area with the largest usage of industrial-grade SHMP.

Boiler water softening

If industrial boiler feedwater contains Ca²⁺ and Mg²⁺, it will rapidly form scale under high temperature and pressure. Scale has only 1/50th the thermal conductivity of steel; even a thin layer can cause pipe walls to overheat and crack. SHMP is used as a boiler water treatment agent.

Chelation softening: The Ca²⁺ and Mg²⁺ in the influent are chelated into soluble complexes, allowing them to remain dissolved in the boiler without forming scale;

Threshold effect: Even at concentrations far below equimolar amounts, SHMP can prevent the crystallization of scale-forming salts—this "superstoichiometric" scale inhibition effect is the core advantage of SHMP.

Circulating cooling water scale inhibition and corrosion inhibition

In chemical plants, steel mills, and power plants, circulating cooling water systems will cause heat exchangers to become clogged with scale within weeks if the water is not treated. SHMP serves as a cooling water treatment agent.

Scale inhibition: It chelates Ca²⁺ and Mg²⁺, and at the same time distorts the lattice of the already formed microcrystals, preventing them from growing into hard scale;

Corrosion inhibition: Forms a phosphate-containing protective film on the metal surface, delaying electrochemical corrosion;

Dispersion: Keeps existing suspended matter (rust, silt, microbial residue) in the system dispersed and prevents it from settling.

Membrane water treatment – RO/NF/EDI scale inhibitors

Reverse osmosis (RO) membranes and nanofiltration (NF) membranes are the core equipment for modern pure water production. Scale buildup on the membrane surface is the number one problem in membrane system operation—once scale forms, membrane flux drops sharply, requiring chemical cleaning or even replacement. SHMP, added as a scale inhibitor in pretreatment before membrane treatment, prevents the deposition of sparingly soluble salts such as CaCO₃, CaSO₄, and BaSO₄ on the membrane surface through chelation and dispersion mechanisms.

2.2 Synthetic Detergents and Industrial Cleaning—The "Cure" for Hard Water

SHMP is a classic inorganic detergent builder in the formulation of laundry detergents, dishwasher tablets, and industrial cleaning agents.

Softening hard water: Chelates Ca²⁺ and Mg²⁺ in the water and releases surfactants. Without SHMP, calcium and magnesium ions in hard water would combine with surfactants to form insoluble metallic soaps (the white soap scum on the edge of the bathtub), which wastes surfactants and leaves traces.

Anti-redeposition: SHMP gives the washed-off dirt particles a negative charge, causing them to repel each other and remain stably suspended in the detergent solution, preventing them from re-adhering to the surface of fabrics or tableware.

Stable to alkalinity: SHMP maintains its chelating activity even in the high pH environment of the washing solution, which is superior to many organic chelating agents.

In the era of phosphate-containing laundry detergents, SHMP and sodium tripolyphosphate (STPP) were the two pillars of detergent additives. Although phosphate-containing laundry detergents have been largely replaced by phosphate-free formulas in the consumer market for environmental reasons (phosphates cause eutrophication of water bodies), SHMP is still widely used in industrial cleaning (hotel linens, car parts, beer bottle cleaning, etc.) because industrial wastewater treatment facilities can recover phosphorus.

2.3 Mineral Flotation – The “Sorter” of Ore

This is one of the most interesting applications of SHMP in terms of technical sophistication.

Flotation is the most important separation method in the mineral processing industry—crushed ore is mixed with water to form a slurry, air bubbles are introduced, target minerals adhere to the air bubbles and float to the surface, while gangue minerals sink to the bottom. To achieve selective separation, various flotation reagents need to be added.

SHMP acts as both an inhibitor and a dispersant in flotation.

Phosphate rock flotation: In the separation of apatite (the useful mineral) from calcite and dolomite (gangue minerals), SHMP selectively adsorbs onto the surface of calcite/dolomite, making it hydrophilic—"holding" them down and preventing them from floating, while apatite floats smoothly under the action of collectors. Studies show that SHMP and collectors compete for adsorption on the mineral surface, precisely controlling the hydrophilicity and hydrophobicity of the minerals;

Dispersed slime: After ore is ground into micron-sized powder, the fine slime particles easily clump together, interfering with flotation. SHMP (Shrink-Shrink Particles) causes the slime particles to carry a negative charge on their surfaces, repelling each other and maintaining dispersion—this is known as...

2.4 Ceramic Industry – Anti-settling Agents for Glaze Slurries and Clay Slurries

In ceramic production, glaze (the vitreous layer covering the surface of the ceramic body) needs to be mixed with water to form a glaze slurry, which is then applied to the surface of the ceramic body through methods such as dipping, spraying, or rinsing. The uniformity and stability of the glaze slurry directly determine the quality of the glaze surface after firing.

SHMP as a ceramic deflocculant:

Dispersing glaze particles: SHMP adsorbs on the surface of glaze particles (feldspar, quartz, kaolin, etc.), giving them a negative charge. The electrostatic repulsion between particles prevents sedimentation and agglomeration.

Reducing glaze viscosity: Under the same solid content, adding a trace amount of SHMP (0.1%~0.5%) can significantly reduce the viscosity of the glaze and improve its fluidity—this is especially important for spray glazing and automated production lines;

Improve glaze quality: After firing, the uniformly dispersed glaze slurry has a smooth and flat surface, free of pinholes, ripples, and orange peel texture.

The same principle applies to the preparation of ceramic body slurry—SHMP is a commonly used decoction agent in the slip casting process of sanitary ceramics (toilets, washbasins).

2.5 Paper Industry – Pulp Dispersion and Coating

Papermaking is another traditional application area for SHMP:

Pulp bleaching: Similar to TSPP and DSP, which I wrote about before, SHMP chelates Mn²⁺ and Fe³⁺ in H₂O₂ bleaching to prevent the bleaching agent from being catalytically decomposed and to protect the pulp fibers;

Pulp dispersion: On the paper machine, SHMP ensures that the fibers are evenly dispersed in the pulp, preventing flocculation and clumping, resulting in better paper uniformity;

Coating process: In the production of coated papers such as art paper, the coating pigments (calcium carbonate, kaolin) need to be highly dispersed to form a uniform coating on the paper surface. SHMP is a classic dispersant in coating solutions—it keeps each pigment particle independent, resulting in a coating with strong hiding power and high gloss.

2.6 Textile Printing and Dyeing – Ensuring Consistent Color in Every Piece of Fabric

In the textile printing and dyeing industry, water quality is the primary prerequisite for determining dyeing quality. Ca²⁺ and Mg²⁺ in hard water can combine with dye molecules, leading to:

Dye precipitation—the dye solution becomes cloudy, resulting in uneven dyeing;

Color shift—certain metal ions can alter the color of a dye;

Calcium stains on fabric – white water stains left on the fabric after drying.

SHMP, as a water softener for dyeing and printing, chelates calcium and magnesium ions in the water before dye liquor preparation, allowing dye molecules to uniformly dye fibers in an "undisturbed" state. SHMP is a universal water treatment agent for different dye systems, including reactive dyes, direct dyes, and acid dyes.

In printing pastes, SHMP also helps to dissolve and disperse dyes evenly, preventing screen clogging and uneven color development during the printing process.

2.7 Paints and Pigments – Ensuring Even Color Distribution

The biggest problem with pigments in paints (latex paints, industrial paints) and inks is agglomeration—pigment particles sticking together, resulting in uneven color and poor hiding power. SHMP acts as a pigment dispersant in paint systems.

It adsorbs onto the surface of pigment particles (such as titanium dioxide, iron oxide red, and carbon black), causing them to be charged and repelled, thus maintaining uniform suspension;

Reduce the viscosity of the slurry during grinding to achieve higher grinding efficiency and lower energy consumption;

Prevent pigments from re-flocculating and settling during storage—ensuring that the paint has a uniform color and does not form a crust after opening.

2.8 Oil Drilling - Mud Diluents and Dispersants

Similar to sodium pyrophosphate, which we discussed earlier, SHMP acts as a viscosity reducer and dispersant in drilling mud. Its chain-like molecular structure makes it more effective than short-chain pyrophosphates in dispersing clay particles—it "spreads out" the layered structure of clay, allowing the mud to maintain its ability to suspend cuttings while maintaining good fluidity and pumpability.

2.9 Building and Refractory Materials

Refractory materials: SHMP is used as a high-temperature binder in the production of unshaped refractories (such as castables and ramming mixes) - it reacts with alumina and magnesium oxide at high temperatures to form a phosphate-bound phase, giving the material high-temperature strength;

Concrete: SHMP is sometimes used as a retarder and water-reducing agent component to adjust the setting time and fluidity of concrete.

2.10 Other industrial uses

Photography industry: Adding trace amounts of SHMP to developing and fixing solutions prevents calcium and magnesium ions in hard water from causing white spots on film;

Sodium monofluorophosphate preparation: SHMP reacts with sodium fluoride at high temperature to produce sodium monofluorophosphate—one of the core anti-caries active ingredients in fluoride toothpaste;

Soil Analysis: Used as a dispersant in soil particle analysis—to disperse soil aggregates into individual particles;

In leather processing: it is used as a dispersant and softener in tanning and dyeing processes.

3.Summarize

Sodium hexametaphosphate (SHMP) plays a role in the industrial world that can be summarized in one sentence: it is present wherever there is a need to "clean up metal ions".
