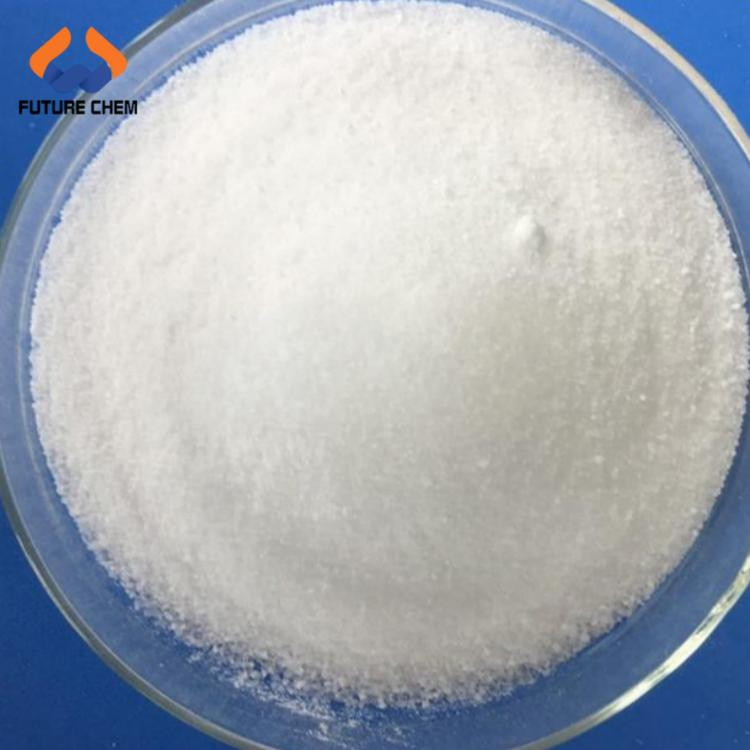

Food grade Tetrasodium pyrophosphate CAS 7722-88-5

What is Tetrasodium Pyrophosphate?

Chemical nature

The core of TSPP is P₂O₇⁴⁻ (pyrophosphate ion) – formed by the condensation of two orthophosphate ions (PO₄³⁻) sharing an oxygen atom. It forms an electrically neutral salt with four sodium ions (Na⁺).

Its two major "superpowers" determine its wide range of uses:

Chelation

It can form stable, soluble complexes with polyvalent metal ions such as calcium, magnesium, iron, and copper, rendering these ions inactive. This is its core mechanism for dealing with hard water, inhibiting scale, and preventing browning.

Buffering & Dispersing

It can maintain the pH stability of the system while allowing suspended particles or emulsified oil droplets to repel each other and disperse evenly.

Uses of industrial-grade Tetrasodium Pyrophosphate

Beyond food and daily chemicals, industrial-grade TSPP reveals a more "hardcore" side:

Electroplating industry – the core of pyrophosphate copper plating

Pyrophosphate electroplating of copper is one of the most promising cyanide-free copper plating routes. TSPP, as the main complexing agent, forms a highly stable [Cu(P₂O₇)₂]⁶⁻ complex with Cu²⁺, enabling copper ions to be deposited steadily at a controlled rate on the cathode, resulting in a fine, bright coating with strong adhesion.

Compared to cyanide plating, it is non-toxic, does not produce highly toxic wastewater, and has a safe operating environment. It is currently one of the preferred solutions for electroplating precision electronic components, automotive parts, and decorative parts.

Boiler and Circulating Water Systems – Scale Inhibition and Corrosion Slowing

Industrial boilers, cooling towers, and heat exchangers face two major threats: scale and corrosion. TSPP's solutions address both:

Scale Inhibitor

It complexes with Ca²⁺ and Mg²⁺ to prevent them from forming insoluble carbonate or sulfate scale;

Lattice distortion

Even if a small amount of scale crystals are formed, pyrophosphate ions are adsorbed onto the surface of the crystal nucleus, distorting the crystal lattice and preventing it from growing into hard scale.

Corrosion Inhibitor

A protective film is formed on the metal surface, reducing the rate of electrochemical corrosion.

This multi-functional capability makes TSPP a core component in industrial water treatment formulations.

Textile Printing and Dyeing – From Wool Degreasing to Fine Bleaching and Dyeing Auxiliaries

In the wool textile industry, raw wool contains a large amount of natural oils and impurities. TSPP, as a degreasing agent, removes the oils from the wool fibers through emulsification, while preventing calcium and magnesium ions in the water from forming insoluble soaps that deposit on the wool surface.

In the dyeing and printing process, dyes are extremely sensitive to metal ions—even trace amounts of iron or copper can cause vibrant colors to darken and become dull. TSPP acts as a "metal ion shield," ensuring bright colors and batch-to-batch consistency.

Paper Industry – Protectors of Bleaching

Modern pulp bleaching uses a large amount of hydrogen peroxide. The problem is that naturally occurring metal ions such as manganese and iron in the pulp act as catalysts, accelerating the decomposition of H₂O₂. This not only wastes bleaching agents but also excessively degrades cellulose, leading to a decrease in paper strength.

TSPP, as a chelating bleaching stabilizer, firmly locks in these "troublesome" metal ions, allowing H₂O₂ to be gently bleached under controlled conditions, achieving a win-win situation of high whiteness and high strength.

Oil drilling - mud dispersion and viscosity reduction

Drilling mud uses a large amount of clay minerals such as bentonite, which are prone to flocculation due to cation bridging, causing abnormally high mud viscosity. TSPP, as a mud diluent and dispersant, fully disperses clay lamellae through sodium ion exchange and electrostatic repulsion mechanisms, reducing viscosity and shear stress, ensuring smooth mud flow during high-pressure pumping, and maintaining sufficient static shear stress to suspend rock cuttings.

Ceramic Industry – Anti-settling Agent for Glaze Slurry

Before glazing ceramics, the glaze needs to be mixed with water to form a slurry. The glaze particles have a high density and are prone to settling and stratification. TSPP, as a highly efficient ceramic decoction agent, adsorbs onto the particle surface, introducing a negative charge. The electrostatic repulsion between the particles causes them to suspend evenly. The result is uniform glazing and a smooth, flawless glaze surface after firing.

Synthetic rubber and emulsion polymerization

In the emulsion polymerization of synthetic rubbers such as styrene-butadiene rubber (SBR) and chloroprene rubber (CR), the stability of the reaction system is crucial. TSPP, as an emulsion stabilizer, chelates metallic impurities that may interfere with the activity of the initiator, while also helping to maintain the dispersion of latex particles, preventing premature aggregation, and ensuring the smooth progress of the polymerization reaction.

Metal Surface Treatment - Industrial Cleaning Formulas

Mechanical parts require thorough degreasing and oil removal before painting, electroplating, or assembly. A water-based metal cleaner formulated with TSPP, surfactants, and alkaline salts can efficiently emulsify mineral oils and animal and vegetable oils, chelate Fe³⁺ generated by rust, and achieve a cleaning effect far exceeding that of a single surfactant system.

Summarize

Tetrasodium pyrophosphate is an extremely "plastic" inorganic phosphate—it possesses the three major functions of chelation, buffering, and dispersion naturally at the molecular level, allowing it to be used in everything from processed cheese on supermarket shelves to drilling mud deep in oil fields.

For buyers, the core selection logic for TSPP is: first determine the application scenario (food/industrial) → then select the form (anhydrous/decahydrate) → finally match the purity level. For sellers, being able to clearly explain the specific principles and practical value of TSPP in different industries is the starting point for building professional trust.

The competitiveness of many fine chemicals does not depend on the product itself, but on whether you understand your customer's process better than they do – this article aims to help you gain a better understanding of these processes.
