Industrial grade Copper(II) sulfate CAS 7758-98-7

I. What is Copper(II) Sulfate?

Copper(II) Sulfate, also known as copper sulfate (or blue vitriol), is most commonly found in industrial commercial form as a pentahydrate. Its chemical formula is:

CuSO₄·5H₂O

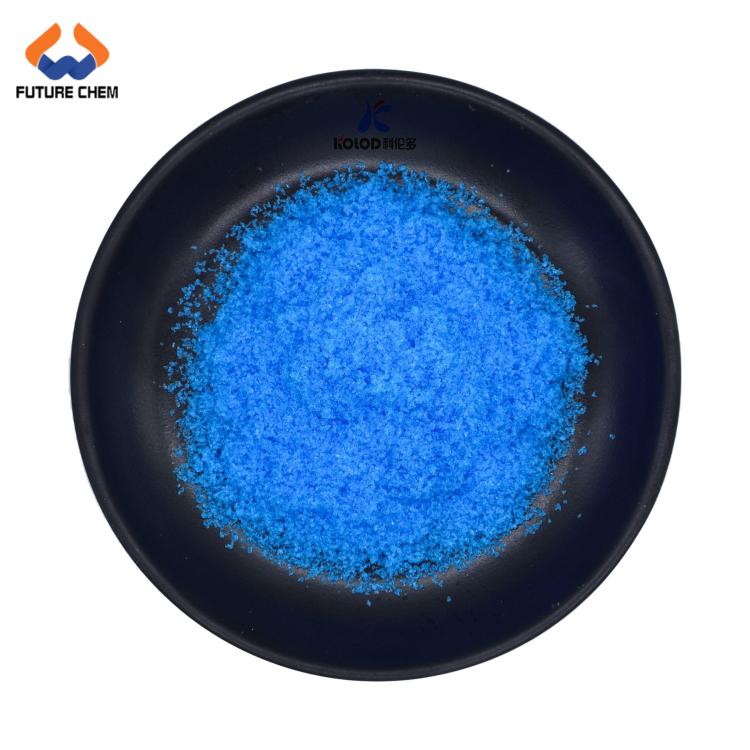

Copper sulfate pentahydrate is a striking blue triclinic crystal—its highly saturated deep blue is one of the most recognizable colors in a chemistry lab, and is the visual source of the traditional Chinese medicine name "chalcanthite" and the mineral name "blue vitriol." When heated, copper sulfate pentahydrate gradually loses its water of crystallization—at 110°C, it loses four molecules of water to become a light blue monohydrate, and above 250°C, it becomes white anhydrous copper sulfate. Anhydrous copper sulfate is extremely hygroscopic, rapidly rehydrating and turning blue upon exposure to humid air—this reversible color change makes it a classic laboratory water vapor indicator and a dehydrating agent for organic solvents.

Chemically, copper sulfate is an inorganic salt formed by the combination of copper(II) ions and sulfate ions. Copper is a transition metal element with two common oxidation states—+1 (cuprous, Cu⁺) and +2 (copper, Cu²⁺). The copper in copper sulfate exists in the +2 oxidation state, exhibiting a characteristic blue color in aqueous solution as hydrated copper ions [Cu(H₂O)₆]²⁺. The d⁹ electron configuration of the copper ion causes a strong dd transition absorption in the visible light region—this is the quantum chemical basis for the bright blue color of copper sulfate solutions.

Copper sulfate is highly soluble in water (approximately 32 g/100 mL, 20°C), and its aqueous solution is weakly acidic (pH approximately 4) due to the hydrolysis of copper ions. In water, copper ions exhibit very strong bactericidal, algicidal, and fungicidal activity—free copper ion concentrations as low as 0.5–1.0 mg/L are sufficient to effectively inhibit the growth of most algae and microorganisms. In industrial applications, copper sulfate is classified into different grades according to the purity requirements of the end-use: industrial grade (main content ≥96%–98%), electroplating grade (≥99%, with strict restrictions on impurities such as iron, zinc, nickel, and chloride ions), feed grade (with strict restrictions on heavy metals arsenic and lead), and agricultural grade. GB 437 specifies the national standard for agricultural copper sulfate, and HG/T 3592 specifies the industry standard for copper sulfate for electroplating.

II. Main Uses of Industrial Grade Copper(II) Sulfate

1. Electroplating and Printed Circuit Board (PCB) Manufacturing – Copper Sulfate's Largest Industrial Consumer Market

The electroplating industry—especially acidic copper plating in printed circuit board (PCB) manufacturing—is the largest and most technically demanding application area for industrial-grade and electroplating-grade copper sulfate.

Acidic copper sulfate plating is one of the most critical wet chemical processes in PCB manufacturing. In the manufacturing process of multilayer PCBs, the electrical connections between layers rely on plated through-holes (PTHs) that penetrate the insulating layer. The walls of the PTHs are themselves made of insulating epoxy resin and glass fiber, and current cannot be directly conducted through the walls. A very thin conductive copper seed layer (approximately 0.5~1 μm thick) must first be deposited on the hole walls using electroless copper plating. Then, an acidic copper sulfate plating solution is used to thicken the copper layer on this seed layer to the required conductive thickness (typically 20~30 μm).

A typical PCB acidic copper plating solution formulation consists of 100-250 g/L copper sulfate pentahydrate, 50-100 g/L sulfuric acid, 50-80 mg/L chloride ions, and several organic additives (brighteners, leveling agents, and stretching agents). Under the action of direct current, the copper plate at the anode dissolves into Cu²⁺ and enters the solution, while the Cu²⁺ on the cathode PCB is reduced to metallic copper and uniformly deposited on the surface of the conductors and hole walls.

PCB copper plating places extremely stringent requirements on the purity of copper sulfate. Impurities such as iron, zinc, nickel, chromium, arsenic, and antimony, even at ppm or ppb levels, are sufficient to introduce lattice defects into the plating, leading to decreased ductility, increased resistivity, or surface roughness. Electroplating-grade copper sulfate (HG/T 3592) requires a main content of over 99.0%, while also imposing strict limits on key impurities such as iron, zinc, nickel, and chlorides. China's PCB manufacturing industry—the world's largest PCB production base, with an annual output in the hundreds of millions of square meters—is one of the main drivers of industrial consumption of copper sulfate.

2. Mineral Processing and Metallurgy – Activators for Flotation of Copper Sulfide Ores

Hydrometallurgy and mineral processing are the second largest industrial consumer markets for copper sulfate. In froth flotation processes for copper ores—especially complex copper-bearing sulfide ores—copper sulfate plays a key role as an "activator."

The basic principle of flotation is to achieve selective separation by utilizing the differences in hydrophobicity of different mineral surfaces. The natural hydrophobicity of copper sulfide minerals (chalcopyrite CuFeS₂, chalcocite Cu₂S, bornite Cu₅FeS₄, etc.) is insufficient to support efficient flotation separation. Therefore, their surface hydrophobicity needs to be artificially enhanced through the selective adsorption of collectors (xanthate, aerofloat, etc.).

The mechanism of action of copper sulfate as an activator is that Cu²⁺ is adsorbed on the surface of the target mineral in the slurry, and replaces Zn²⁺ or Fe²⁺ ions in the mineral surface lattice through ion exchange, forming an active copper sulfide film (CuS) on the mineral surface. This film has a much stronger adsorption capacity for xanthate collectors than the original mineral surface, thereby significantly improving the flotation recovery rate.

Against the backdrop of a global shift towards lower-grade and complex associated mineral deposits—high-grade single-sulfide copper mines are becoming increasingly depleted, and newly developed deposits are generally low-grade with complex mineral associations—the reliance of flotation processes on activators is rising. The consumption of copper sulfate in this industry trend is expected to increase in tandem with the continued growth of global copper demand, particularly the significant demand from electric vehicles and renewable energy infrastructure.

3. Water Treatment – Algaecides and Water Purification

Copper sulfate is primarily used in water treatment for algae control in landscape water bodies, swimming pools, and industrial cooling water systems. The excessive proliferation of cyanobacteria (blue-green algae) and green algae in eutrophic water bodies—commonly known as "algal blooms"—not only affects the aesthetic value and transparency of the water, but the algal toxins (such as microcystins) produced by these blooms also pose a direct threat to drinking water safety and human health.

The mechanism of copper sulfate's algicidal effect is based on the inhibition of photosynthetic system II (PSII) in algal cells by Cu²⁺. Copper ions undergo a displacement reaction with plastocyanin on the thylakoid membrane of chloroplasts, blocking the photosynthetic electron transport chain, and causing algal cells to die due to the interruption of energy supply. A concentration of free Cu²⁺ in water of 0.5–1.0 mg/L can effectively inhibit the growth of most phytoplankton.

In drinking water treatment, copper sulfate is used to control seasonal algae blooms in reservoirs, water storage tanks, and water conveyance channels—especially during the high-temperature summer season. In swimming pools, copper sulfate is used in conjunction with other disinfectants (chlorine-based agents) to inhibit algae growth on pool walls, bottoms, and in the grout lines of waterline tiles. The blue color of copper sulfate itself also enhances the pool water's hue, giving it a more appealing blue-green tint.

4. Chemical Catalysts and Industrial Synthesis

Copper sulfate has a variety of applications in organic synthesis and industrial catalysis:

- Dehydration catalysts for alcohols—providing Lewis acid catalytic sites in the gas-phase dehydration of alcohols to olefins and ethers.

- Copper sulfate, a copper catalyst feedstock for certain oxidation and coupling reactions, can be reduced and used to prepare various copper-based catalyst precursors.

- The dimerization of acetylene—in the classic synthetic route of chloroprene monomer (chloroprene), the cuprous chloride catalyst is prepared by the reduction of copper sulfate with sulfur dioxide.

5. Pigments, wood preservatives, and other industrial applications

Inorganic pigments—copper sulfate—were the raw material for preparing historical inorganic green pigments such as Paris Green (copper arsenite acetate) and Scheele Green (copper arsenite). These arsenic-based green pigments were discontinued in the early 20th century due to their toxicity, but they were widely used in wallpaper, painting, and textile dyeing in the 19th century.

Wood preservation—The copper component in waterborne wood preservatives such as copper chromium arsenide (CCA) and copper azole is derived from copper sulfate. CCA-treated wood is used for the preservation and protection of outdoor fences, utility poles, and railway sleepers.

Steel bluing (blackening) treatment – In an alkaline oxidizing solution, a dense layer of iron(II,III) oxide (Fe₃O₄) film is formed on the surface of the steel as a rust-preventive protective layer. Copper sulfate is added as an oxidation promoter in some bluing formulations.

Textile dyeing – Copper sulfate is used as a copper complex fixing agent in the dyeing processes of direct dyes and reactive dyes (copper salt post-treatment improves wet rubbing fastness).

III. Summary

Copper(II) Sulfate Pentahydrate (CuSO₄·5H₂O) is a highly saturated blue inorganic copper salt, extremely soluble in water, with an acidic aqueous solution. It possesses extremely strong bactericidal, algicidal, and fungicidal activities. The toxicity of copper ions to microorganisms and algae is the underlying chemical logic behind all applications of copper sulfate in industry and agriculture—from Bordeaux mixture killing grape downy mildew, to inhibiting green algae from covering pool walls in swimming pools, to supernutrient doses in feed promoting growth—every application utilizes the irreversible binding between copper ions and the sulfhydryl, amino, and carboxyl groups in biomolecules.

In our daily lives, we encounter the industrial traces of copper sulfate indirectly and comprehensively through various channels, from the copper interconnect lines deposited by copper sulfate electroplating in mobile phone motherboards and computer PCBs, to the industrial front-end of copper sulfate activation and separation of copper-containing ores in mining flotation, to the algal blooms inhibited by copper sulfate in swimming pools and landscape ponds, to the Bordeaux mixture fungicide sprayed in grape and potato cultivation, and to livestock and poultry farming supported by copper feed additives.

Industrial-grade copper sulfate has applications spanning five major industries. Electroplating and PCB manufacturing represent the largest tonnage and highest purity requirements—acidic copper sulfate electroplating solutions precisely deposit conductive copper layers on the vias and conductors of every circuit board, driving the foundation of the global electronics manufacturing industry. In mineral processing and metallurgy, copper sulfate acts as an activator in the flotation of copper sulfide ores, bringing copper minerals from low-grade ores into the froth concentrate, representing a key technological node in the process of copper's journey from the mine to industrial society. In agriculture, Bordeaux mixture has protected grapes and potatoes from downy mildew and late blight for over 130 years. Water treatment, feed, catalysis, and pigment industries also continuously consume different grades of copper sulfate within their respective application logics. From the one-micron copper plating layer precipitated in the electroplating tank of a PCB factory, to the copper-containing foam churning in the flotation tank of a Chilean copper mine, to the sky-blue droplets that have remained still for a century on the leaves of a Bordeaux vineyard in France—copper sulfate pentahydrate, as a blue crystal, simultaneously constructs an indispensable copper-based chemical barrier on the electronic framework and biological defense line of the human world.
