I. What is Ferrous Oxalate?

Ferrous oxalate (also known as ferrous oxalate) is an inorganic salt formed by the combination of ferrous ions (Fe²⁺) and oxalate ions (C₂O₄²⁻). It is commonly available commercially as a pale yellow dihydrate. Its chemical formula is:

FeC₂O₄·2H₂O

Oxalic acid is widely found in nature and is a naturally occurring organic acid found in plants such as spinach, rhubarb, beets, and cocoa. It is also one of the end products of vitamin C and glycine metabolism in the human body. Therefore, the iron source and acid radical source of ferrous oxalate can both be found in biological metabolic systems, and it is not a completely "external" synthetic compound.

From a chemical structure perspective, ferrous oxalate is a reducing ferric salt—both the ferrous ion (Fe²⁺) and the oxalate ion (C₂O₄²⁻) in the molecule possess reducing properties. This dual reducing characteristic endows ferrous oxalate with unique chemical functions in multiple industrial fields:

Thermal decomposition behavior:

When ferrous oxalate is heated in air, it first loses its water of crystallization (approximately 150–200°C), followed by the decomposition of the oxalate ions to produce carbon monoxide and carbon dioxide (approximately 250–400°C), ultimately forming iron oxide (Fe₂O₃) or magnetite (Fe₃O₄, depending on atmospheric conditions). This controllable thermal decomposition process is the common chemical basis for ferrous oxalate as a pigment precursor, magnetic material precursor, and battery material precursor—by controlling the calcination atmosphere, temperature, and reactant ratio, ferrous oxalate can be precisely converted into the desired end product in different industrial scenarios.

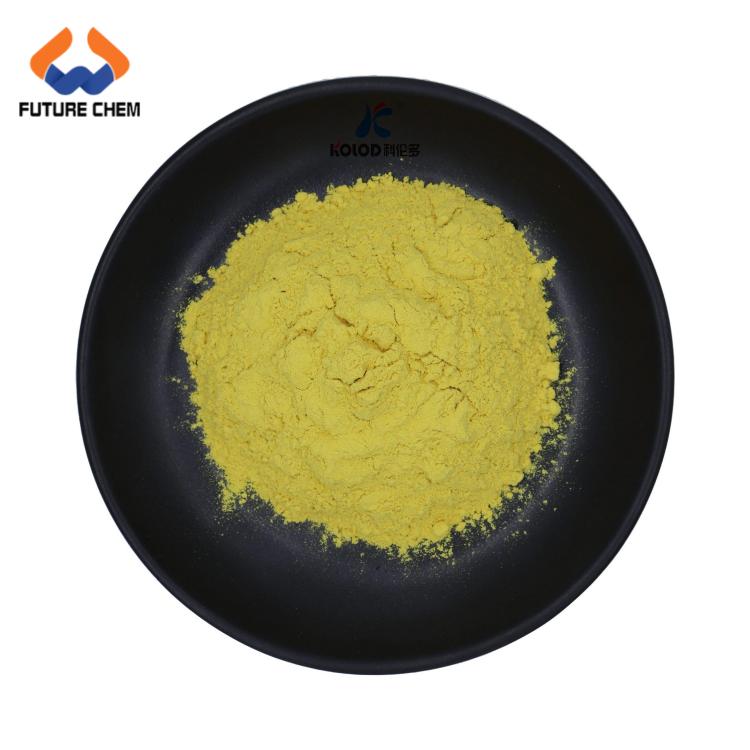

Ferrous oxalate is typically a pale yellow to light yellow-green crystalline powder, almost insoluble in water but soluble in dilute acids. Its quality standards vary significantly depending on the application. Battery-grade ferrous oxalate requires impurity control at the ppm or even ppb level, while pigment-grade and industrial-grade ferrous oxalate have wider impurity tolerances, focusing on color performance, decomposition characteristics, and product consistency.

II . What are the uses of Ferrous Oxalate?

Ferrous oxalate has garnered significant attention from capital markets and industry in recent years due to the explosive growth of lithium iron phosphate batteries, with battery-grade products becoming its fastest-growing segment. However, prior to the rise of the lithium battery industry, ferrous oxalate had served in various traditional industries for over a century as a pigment precursor, colorant, photosensitive material, and chemical intermediate. Even today, these "non-battery" applications collectively constitute the diversified market base for ferrous oxalate.

1. Pigments and colorants—the source of color from ceramic glazes to automotive glass.

This is the largest traditional application area for ferrous oxalate outside of batteries. Ferrous oxalate itself is a pale yellow powder, but its core value lies not in its color, but in its role as a "chemical precursor of iron oxide pigments"—by precisely controlling the thermal decomposition conditions, ferrous oxalate can be converted into a variety of iron oxide pigments ranging from yellow (hydrated iron oxide), red (α-Fe₂O₃), brown to black (Fe₃O₄).

In this field, ferrous oxalate plays the role of a "chemical raw material for color factories":

Plastic coloring:

Iron oxide pigments are among the most widely used colorants in the plastics industry, exhibiting excellent heat resistance (up to 300°C and above), lightfastness, and chemical stability. Iron oxide pigments prepared using ferrous oxalate as a precursor can be used for coloring PVC pipes, plastic films, artificial turf, automotive interior parts, toys, and packaging materials. Ferrous oxalate-derived iron oxide pigments may be found in everyday consumer products such as colored trash cans, garden hoses, and plastic furniture.

Paints and coatings:

Iron oxide pigments are widely used in architectural coatings, industrial protective paints, marine coatings, and wood coatings. Iron oxide red (α-Fe₂O₃) and iron oxide yellow (α-FeOOH), obtained by calcining ferrous oxalate, are important sources of iron-based pigments in the coatings industry and are used in exterior wall stone paints, anti-rust primers, and colored floor coatings.

Ceramic glazes and glass coloring:

In the ceramics industry, ferrous oxalate can be used directly or after pre-firing as a coloring component in ceramic glazes. Its iron ions enter the silicate network of the glaze layer during high-temperature firing, resulting in a rich range of hues from pale yellow and amber to brownish-red, and are widely used in daily-use ceramics, art ceramics, and architectural ceramics. In the glass industry, ferrous oxalate provides iron ions to the glass melt, used in the production of amber-colored glass bottles (which provide UV shielding to protect the contents of beverages), architectural decorative glass, and colored lighting glass.

Tinting of automotive glass and sunglass lenses:

The pale green tint of car windshields originates from the presence of iron ions in the glass. Ferrous oxalate is one of the raw materials chosen for introducing iron ions. Similarly, iron-based colorants in some sunglasses lenses and optical filters may also be derived from ferrous oxalate. In these products used daily by drivers and outdoor enthusiasts, the coloring of the glass is chemically linked to ferrous oxalate.

2. Photographic Materials – The Historical Role of Developers

Before the widespread adoption of digital photography, ferrous oxalate played an important but now largely disappeared role in traditional black and white photography as a developer.

In the era of gelatin silver process photography from the late 19th to the early 20th century, ferrous oxalate was one of the early developers used in silver bromide gelatin dry plates. The basic principle of development was that the ferrous ions in ferrous oxalate reduced the silver ions in the exposed silver halide grains to metallic silver, forming a visible black image.

Ag⁺ (after exposure) + Fe²⁺ (ferrous oxalate) → Ag (silver, a ferrous metal) + Fe³⁺

Although ferrous oxalate developer was later replaced by organic developers such as hydroquinone, Metol, and Phenidone, it holds a pioneering position in the history of photographic chemistry. Some classic black and white images from the late 19th and early 20th centuries that we see in museums and archives today may have used ferrous oxalate developer in their chemical formation process.

In modern photography and printing, ferric oxalate, a close relative of ferrous oxalate, is still used in classic photographic processes such as platinum type and cyanotype. These processes still have a loyal following in art photography and fine art creation. Ferric oxalate is reduced to ferrous oxalate under ultraviolet light, which then reacts with platinum or palladium salts to produce a metallic image.

3. Magnetic materials – precursors of nano-ferric oxide

Ferrous oxalate decomposes thermally under inert or reducing atmospheres to form magnetite (Fe₃O₄), which is one of the most important magnetic materials. Fe₃O₄ nanomaterials prepared using ferrous oxalate as a precursor have unique value in the following fields:

Magnetic recording materials:

Fe₃O₄ nanoparticles are used in the production of magnetic tapes, magnetic cards, and magnetic storage media. The controlled thermal decomposition of ferrous oxalate provides a chemical pathway for preparing Fe₃O₄ nanoparticles with uniform particle size and stable magnetic properties.

Biomedical magnetic nanomaterials:

In the biomedical field, Fe₃O₄ magnetic nanoparticles are used in cutting-edge technologies such as magnetic resonance imaging (MRI) contrast agents, magnetically targeted drug delivery, and magnetic hyperthermia. Ferrous oxalate, as a precursor, provides a synthetic route that allows for precise control of nanoparticle size and morphology.

Electromagnetic shielding and absorbing materials:

Fe₃O₄ and its composites can be used for electromagnetic wave absorption and shielding. In environments with increasingly dense electronic devices and communication base stations, the demand for electromagnetic compatibility (EMC) materials is constantly growing, and ferrous oxalate has potential application value as a precursor in this field.

4. Supercapacitor Electrode Materials – Precursors for Porous Carbon/Iron Oxide Composite Materials

Supercapacitors are electrochemical energy storage devices that fall between traditional capacitors and batteries, characterized by high power density, fast charge/discharge speeds, and extremely long cycle life (hundreds of thousands of cycles). Ferrous oxalate's application logic in this field is similar to its application in lithium-ion batteries, but its mechanism of action differs.

In supercapacitors, ferrous oxalate can be used to generate porous iron oxide/carbon composite materials in situ through controlled thermal decomposition, wherein:

- The iron oxide component provides pseudocapacitance (energy storage through reversible redox reactions).

- The carbon component (produced from the decomposition of oxalate) provides the double-layer capacitance and conductive network.

- The pores generated during thermal decomposition form a rich porous structure, which is beneficial for electrolyte permeation and ion transport.

The one-step synthesis of electrode materials using ferrous oxalate as a precursor avoids the cumbersome processes of multi-step impregnation, mixing, and carbonization, offering advantages in simplifying the process and controlling costs. Currently, this direction is mainly focused on laboratory research and pilot-scale verification, but as a low-cost, scalable synthesis strategy for supercapacitor electrode materials, its prospects are worth paying attention to.

5. Chemical catalysts and catalyst precursors

In the chemical industry, ferrous oxalate can be used as a precursor for the preparation of various iron-based catalysts. Its value lies in:

- By controlling the thermal decomposition conditions (temperature, atmosphere, heating rate), the specific surface area, crystal phase composition, and pore structure of the resulting iron oxide or iron-based composite materials can be adjusted over a wide range.

- Oxalate decomposition leaves no residual anions (sulfate, chloride, etc.), avoiding the harmful impurities that may be introduced during catalyst preparation by traditional iron salts (ferrous sulfate, ferric chloride).

- It can be used as an iron-based catalyst for Fischer-Tropsch synthesis, an ammonia decomposition catalyst, and for the catalytic oxidation of volatile organic compounds (VOCs).

6. Laboratory reagents and chemical synthesis intermediates

In scientific research laboratories and fine chemical production, ferrous oxalate serves as a convenient, stable, and easily weighable source of ferrous iron for various chemical synthesis and analytical tests.

- Used as a standard ferrous salt in titration analysis and colorimetric determination

- Intermediate raw material used in the synthesis of other iron compounds

- In materials science research, it serves as a controllable precursor for preparing iron oxide nanomaterials with specific morphologies.

III . Summary

Ferrous oxalate is a pale yellow inorganic salt formed by the combination of ferrous ions and oxalate. Its core chemical characteristics—double reducing properties and controllable thermal decomposition behavior—determine its common role as a "precursor" in multiple industrial fields: precisely converting it into the desired iron oxide, magnetite, or functional composite materials under different temperature, atmosphere, and formulation conditions.

In our daily lives, we mainly come into contact with end products derived from ferrous oxalate through channels such as colored glass bottles and ceramic tableware, car windshields and sunglasses, iron-based pigments in architectural coatings and plastic products, and old photos in museums that were developed using ferrous oxalate developer a century ago.

Beyond battery applications, ferrous oxalate has a wide range of applications, including pigments and colorants (plastics, coatings, ceramic glazes, automotive glass, and sunglasses coloring), historical photography development, magnetic material precursors (Fe₃O₄ nanoparticles for magnetic recording, biomedicine, and electromagnetic shielding), supercapacitor electrode materials, chemical catalysts, and laboratory reagents. If battery-grade ferrous oxalate represents the cutting-edge demands of the new energy era, then these "non-battery" uses represent the traditional foundation of ferrous oxalate's century-long presence in industrial civilization.
